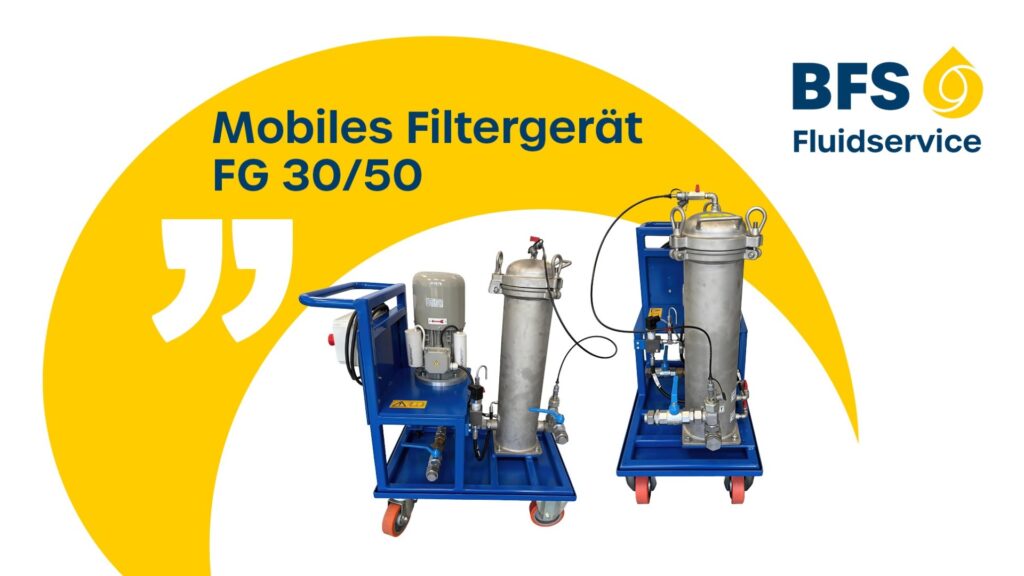

Mobile filter unit for filling, bypass filtration, and cleaning of oil systems. Ideal for maintenance and servicing of hydraulic systems in a wide range of industries to extend component life and prevent breakdowns.
Areas of application
> For oils from ISO VG 22 to ISO VG 100
> Filtered filling of oil systems
> Bypass filtration of oil systems
> Cleaning of oil systems
Technical data
> Mobile design with 2 swivel casters
> Stainless steel filter housing, bypass 3.5 bar with fine filter 3 ym
> Automatic ventilation and venting
> Visual filter monitoring (differential pressure indicator)
> Gear pump in 2 versions
FG 30
Version with 230V – 50 HZ motor
Flow rate approx. 30 liters/minute
FG 50
Version with 400V – 50 HZ motor
Flow rate approx. 50 liters/minute
> Ready to connect (5 m cable and CEE plug)
> 2K paint finish RAL 5005
Other versions or options available on request
Note: All information provided refers to the applications described.
Please contact us if you have different applications. Subject to technical changes.
