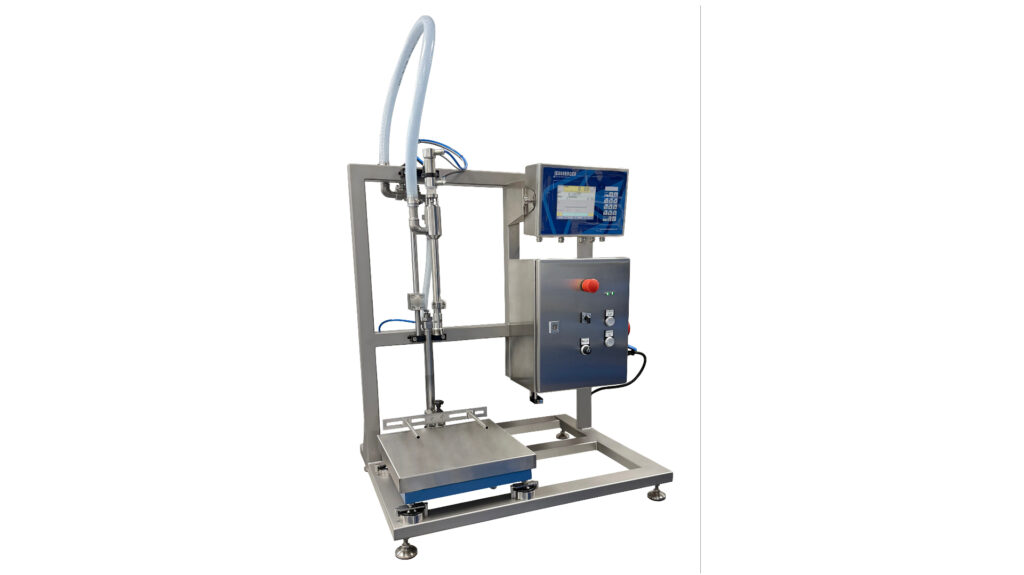

The small-scale filling system is a manually operated, precise dosing solution for transferring low- to medium-viscosity, acidic or alkaline media from drums or containers into smaller vessels (e.g., 10–25 liter canisters). It was specially designed for use with drum pumps but can also be used with existing pumps.
The small-scale filling system offers a reliable, precise, and flexible solution for manually filling industrial liquids—especially in smaller batches—with high safety and ease of operation.
Main features and advantages:
Accurate dosing in combination with a scale (0–30 kg, ±20 g accuracy)
Pre-set filling quantities on the evaluation device—tailored to customer requirements
Suitable for foaming media
User-friendly operation—no automatic operation; filling starts only when container and filling pipe are correctly positioned
Flexible adjustment through adjustable container stop and height-adjustable filling pipe
Check valve prevents dripping of the medium
Optional indexing system for automatic assignment of the correct container to the medium
Industrial control system allows integration with existing systems (e.g., conveyor belts)
Hygienic and robust design: all wetted parts made of stainless steel V4A
Protection class IP65/IP67 for all electronic components (moisture-resistant)
Total weight: 45 kg
Limitations:
Not suitable for liquids with a flash point below 55 °C
Stainless steel V4A must be chemically resistant to the medium
